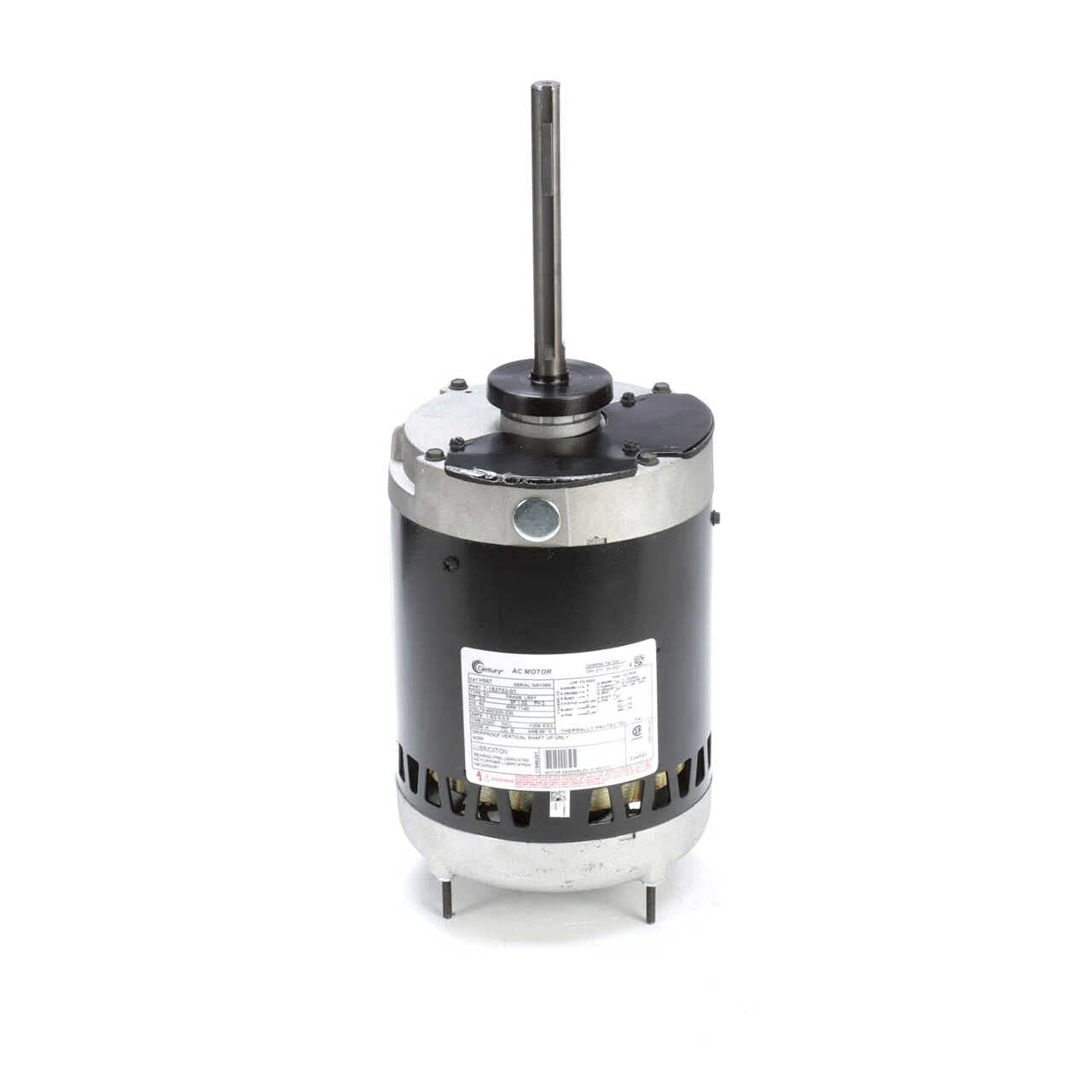

3/4 HP Condenser Fan Motor 1140 RPM 60Hz - Replacement Part for HVAC Systems, Air Conditioners & Refrigeration Units - Perfect for Home, Office & Commercial Cooling Applications
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:28 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:91075992
Product Description
' Condenser Fan Motor, Motor Design 3-Phase, Motor Enclosure Design Open Air-Over, 3/4 HP, RPM Range 1101-1200, Nameplate RPM 1140, Voltage 200-230/460, 56Y Frame, Number of Speeds 1, Overall Length 16-5/16 In., Shaft Length 6 In., Shaft Orientation Up, Features Auto Protector, Quick Connect Design, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 2.8-3.0/1.5, Stud Motor Mounting Type, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Ball '
Product Features
Price For Each Hz 60 Motor Service Factor 1.00 Motor Shaft Rotation CW/CCW Motor Bearings Ball Phase 3 No. of Speeds 1 Motor Sub Application Condenser Fan Motor Application HVAC/R Motor Enclosure Design Open Air-Over Item Condenser Fan Motor Motor Thermal Protection Auto Motor Design 3-Phase Duty Continuous
Standards UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642) Voltage Compatibility 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460 Features Auto Protector, Quick Connect Design, Reversible Frame 56Y Voltage 200-230/460 Ins. Class B Shaft Length 6" Motor Shaft Design Flat Overall Length 16-5/16" Motor Mounting Position Vertical Shaft Up
Nominal Efficiency 78.0% Motor Mounting Type Stud Nameplate RPM 1140 Max. Ambient Temp. 60 Degrees C HP 3/4 Length Less Shaft 10-5/16" Full Load Amps 2.8-3.0/1.5 Shaft Dia. 5/8" Body Dia. 6-1/2" Country of Origin (subject to change) Mexico
