LOYALHEARTDY 3040 High Precision Manual Solder Paste Printer - SMT Stencil Printer for PCB Assembly | Perfect for DIY Electronics & Circuit Board Prototyping
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:80320505
Product Description

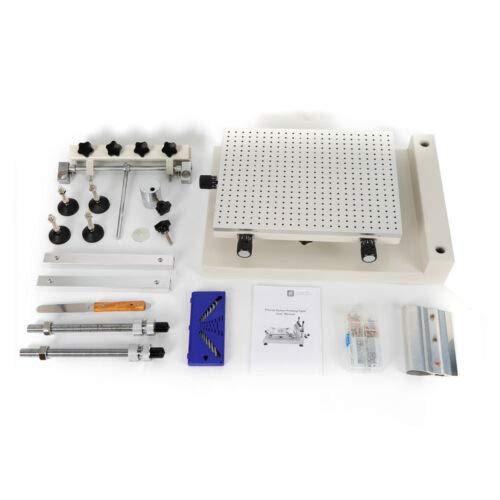

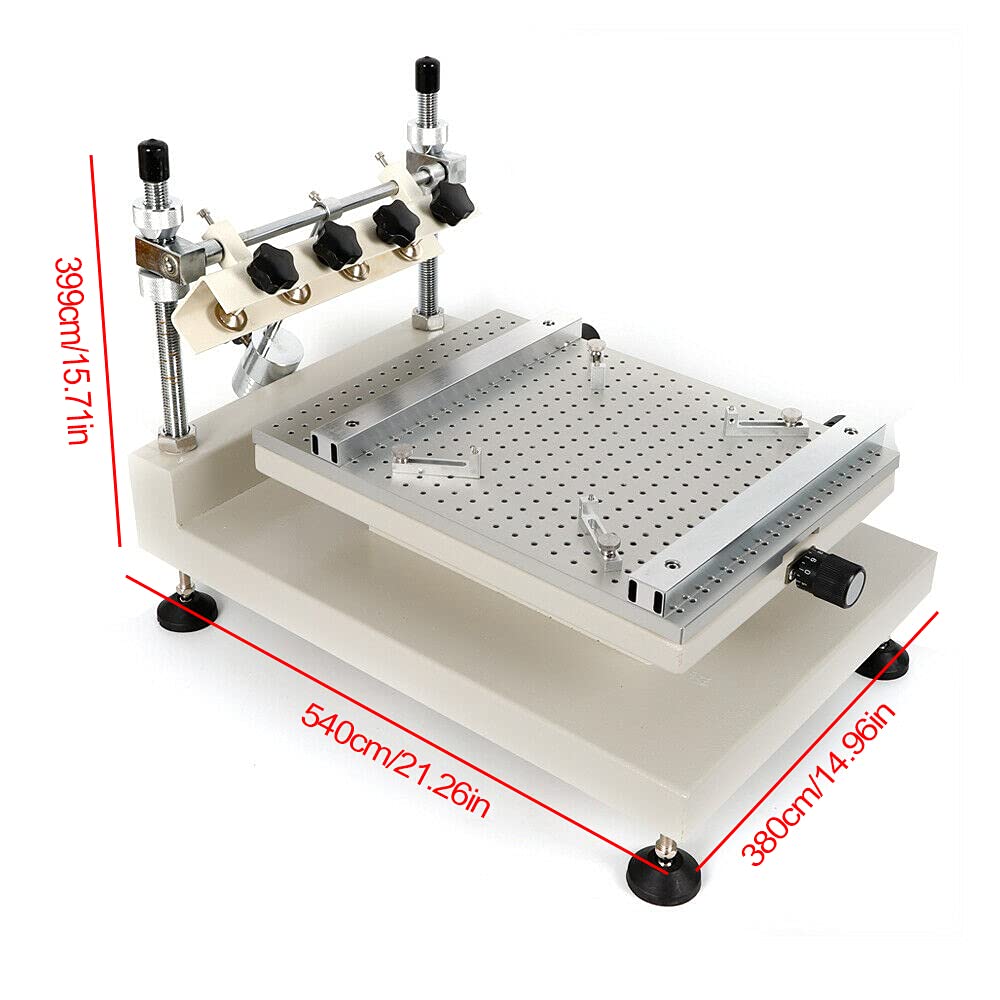

Description Our solder paste printer is equipped with X and Y axis fine-tuning rotary button trim correction, which is convenient for positioning and ensures repetition accuracy. Its base is made of thickened steel plate for durability and longer service life. The printing stencil is fixed by 4 with knobs and a pressure plate, fast and firm, with high repeat accuracy. It will be your ideal choice for screen printing table.ApplicationThe screen printing table is used in a wide range of applications, such as the packaging printing industry, advertising printing industry, circuit printing industry, craft printing industry, glass printing industry, etc.SpecificationMaterial: AluminumMax. Printing Size: 300*400 mm/11.81*15.75inMax. Screen Frame Size: 370*470 mm/14.57*18.50inPrinting Speed: Manual ControlThickness of Printed Material: 0-80 mm/0-3.15inVertical and Horizontal Adjustment of Worktable: 10 mm/0.39inPrinting Platform Height: 19cm/7.48inRepeatability: ±0.01 mmProduct Size: 54*38*39.9 cm/21.26*14.96*15.71inPackage Size: 61*45*22cm/24*17.7*8.6inNet Weight: 20kg/44.09lbsGross Weight: 23kg/50.70lbsPackage Included1 x 3040 Solder Paste PrinterOne Set of AccessoriesNotes1. After each work is completed, the machine must be cleaned and maintained in time to avoid affecting the service life of the machine.2. When the printing template moves up and down, do not use too much force to avoid damaging the machine and affecting the positioning accuracy.3. Pay attention to protecting the positioning pins when taking and placing the circuit board to avoid damage. For positioning holes of different sizes, you can also equip the corresponding positioning pins.
Product Features
【Product Parameters】Maximum screen frame size 370 * 470mm, worktable adjustment 10mm, horizontal angle adjustment, printing platform height 190mm, positioning mode reference or hole shape.
【High Precision】The repeat accuracy of ±0.01mm can accurately print any pattern or text required. The circuit board is positioned with positioning pins, thimble, which is easy to position and can ensure the accuracy of repeated operations.
【Adjustable Height】The stencil holder adopts a spiral screw bar, which can be adjusted up and down in height, making it easy to control the thickness of the PCB and the amount of printed solder paste.
【Flexible Positioning】The positioning mode of reference or hole shape is adopted to avoid errors caused by reference conversion and simplify the unity and design of process formulation. This solder paste printer adopts a universal honeycomb base plate, movable thimble, and movable support plate to position PCB flexibly, which can ensure convenient positioning.
【High Quality & Durable】The workbench material of this 3040 solder paste printer uses high-quality aluminum plate with honeycomb positioning holes, and the bottom plate is welded by thick steel plate, which is strong and durable. The solder paste printer is fixed by a knob with a pressure plate, which is firm and stable. The calibration can be achieved by moving the stencil and fine-tuning the X and Y axes of the printing platform for accurate alignment, which is convenient.
