Yamaha 75HP & 90HP 4-Stroke Tilt Trim Motor (2005+) - Arco 6258 Replacement Part for Smooth Boat Control | Perfect for Marine Repairs & Outboard Motor Maintenance

Product Description

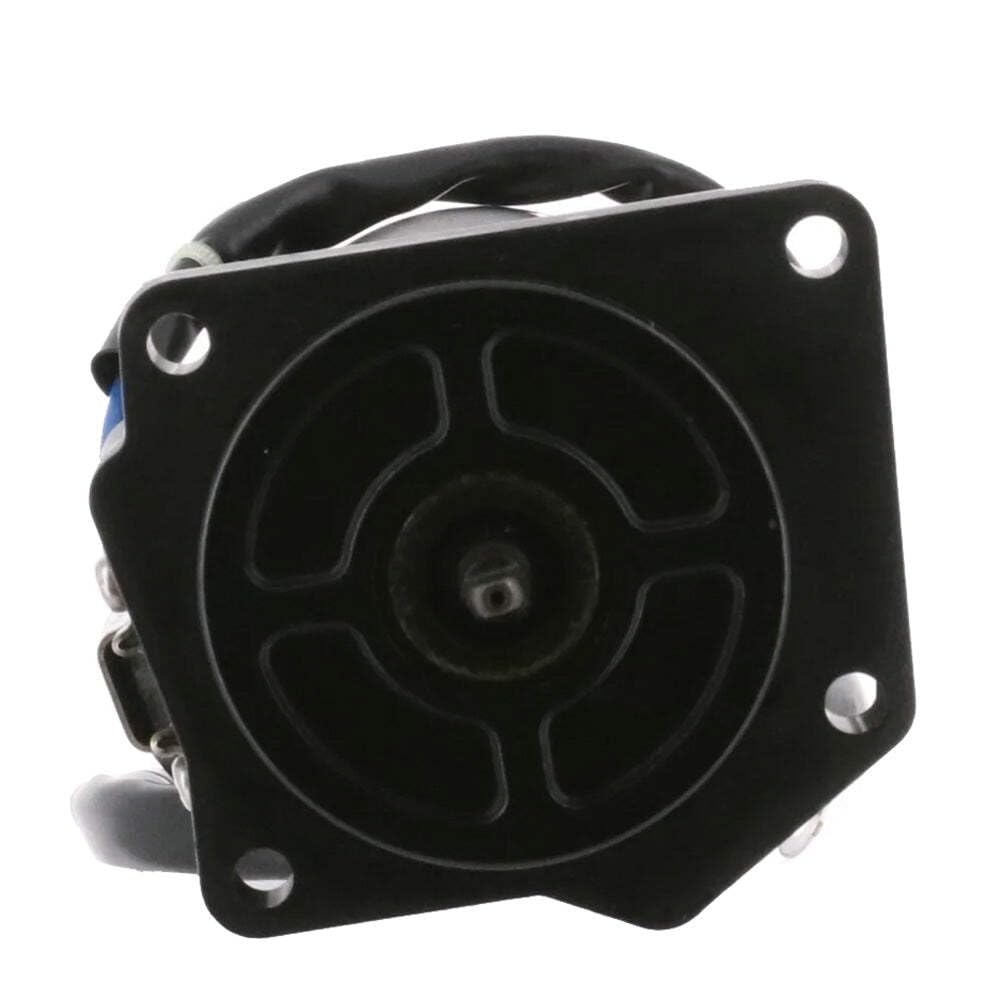

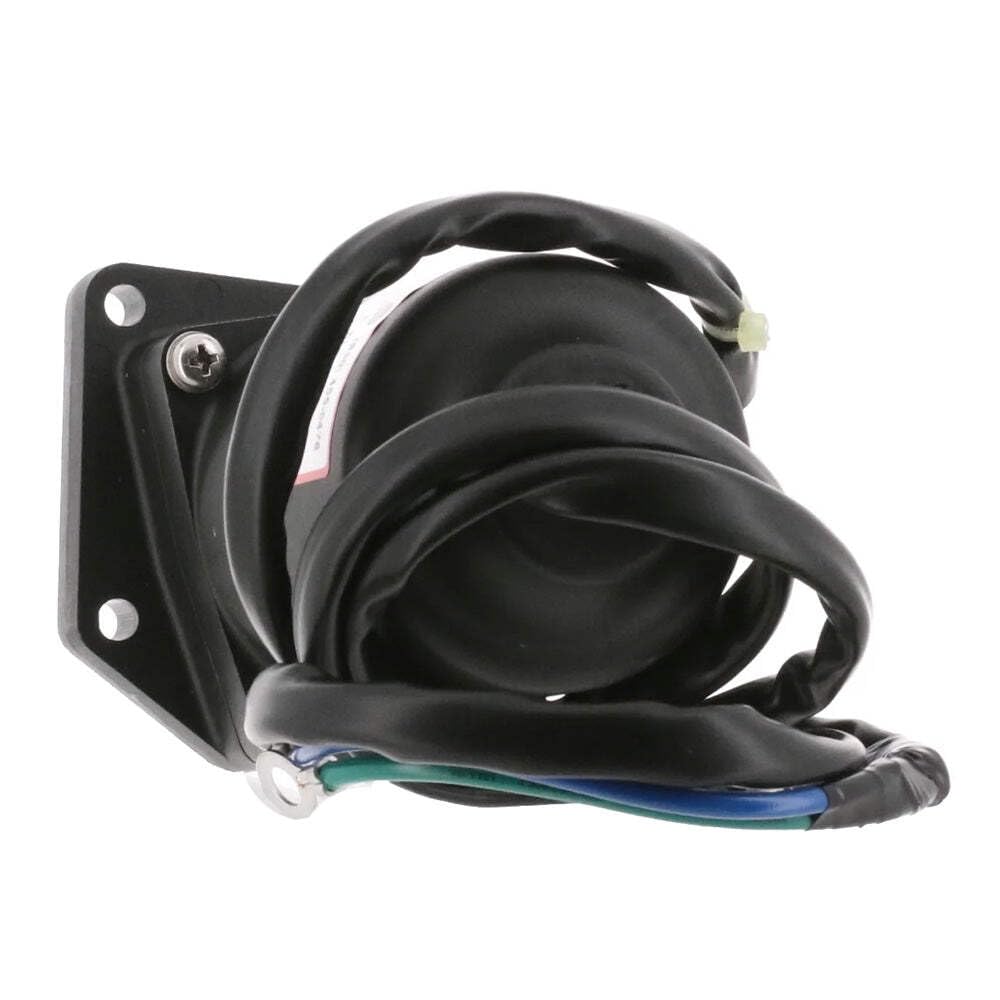

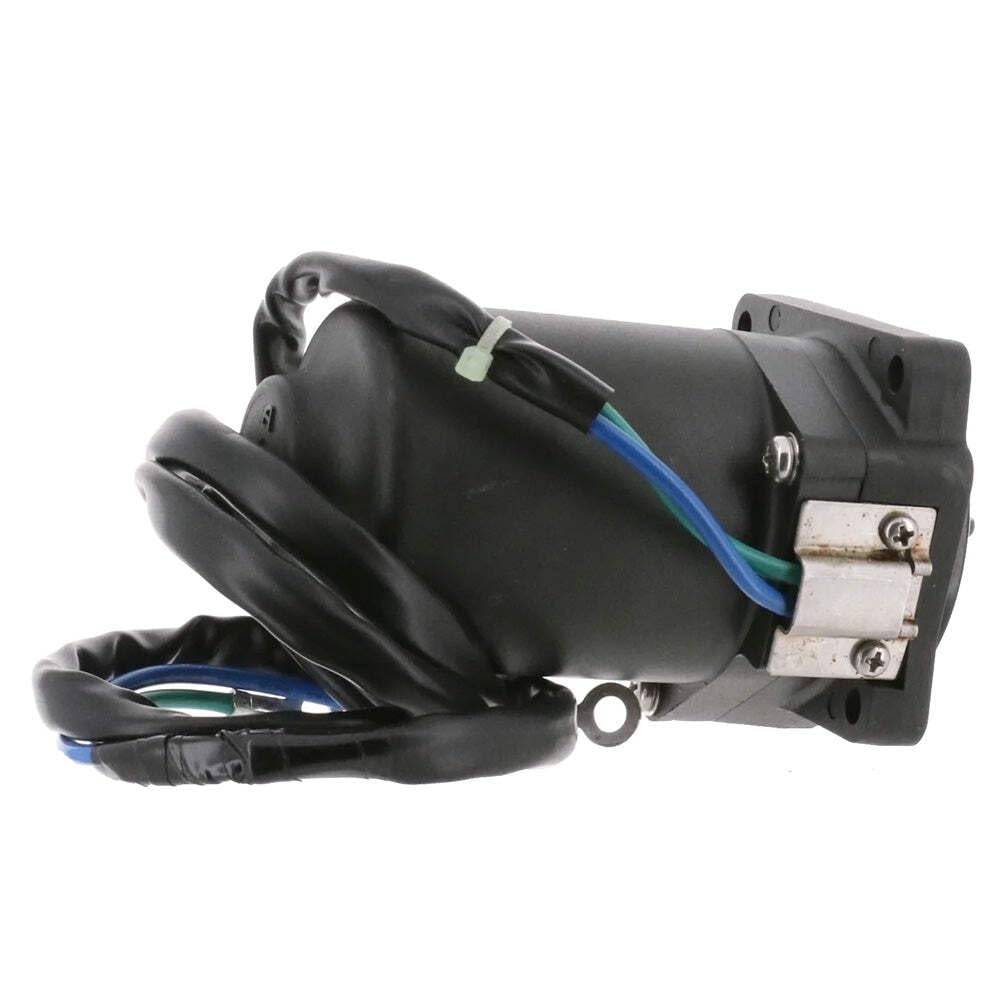

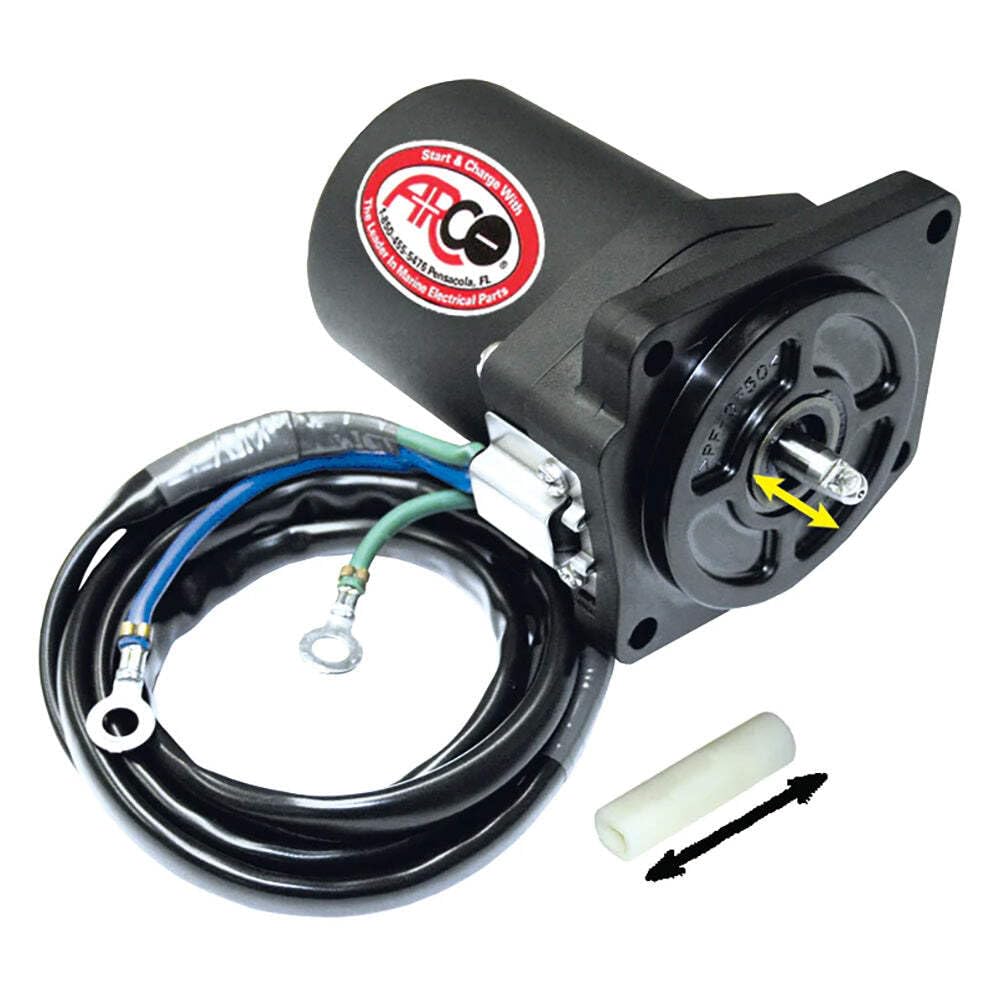

The ARCO 6258 Tilt Trim Motor fits Yamaha 75 HP and 90 HP 4-Stroke (2005+). 2-wire connection, 4-bolt mount. Includes O-ring, coupler, and ring terminal ends. It replaces the following part numbers: Yamaha 6D8-43880-00, Yamaha 6D8-43880-01, and Yamaha 6D8-43880-09. Epoxy powder coated for maximum corrosion protection. Motor shafts induction case hardened at bearing surfaces for superior wear resistance. All armatures tested to withstand 50 times operation voltage (12V). All motors performance tested at 5 different load levels. All motors must meet or exceed OEM performance before being boxed.
